ITEM NO.: 4500

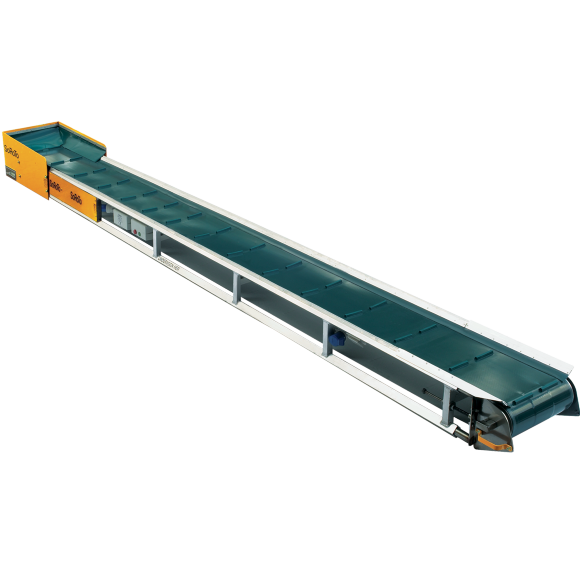

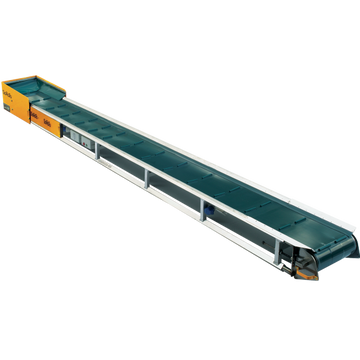

Belt Conveyor 4.5 m

OUR MOST POPULAR BELT CONVEYOR

There is almost no limit to what a SoRoTo® belt conveyor can move for you.

Compared to traditional belt conveyors with rubber belts, our belts are made of PVC, which is a more durable and lightweight material, that furthermore requires minimal maintenance. Our PVC belts - with or without carriers - can handle transportation of all kinds of materials, including building waste, rubble, wood chips, soil, sand, gravel, concrete etc.

- And it's easy to maintain. The holes in the steel plates under the PVC belt cool down both the machine itself and the belt. In addition, they ensure that the machine cleans itself during operation.

Due to the open aluminum frame, we have achieved a very low weight on the entire unit, which in turn makes it an extremely portable conveyor system.

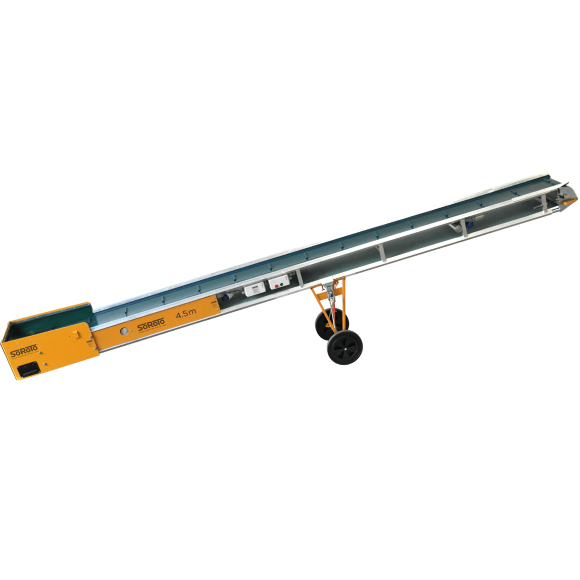

Our 4.5 m belt conveyor is a firm industry favorite. E.g. for jobs which involve excavation of basements, because the length of the belt conveyor is ideal for the narrow workspace as well as the height of most basement windows.

Depending on the exact material you need to move, we offer different types of PVC belts. For transporting lighter material such as hay or wood chips, we recommend a belt with taller carriers. Belts without carriers are suited for transporting heavy and wet materials such as wet mortar, concrete etc.

If you need to transport material further away, or if you need to change the direction, it is possible to interlink all of our belt conveyors in series, in order to achieve the perfect length and flexibility.

In need of a spare part?  Go to accessories

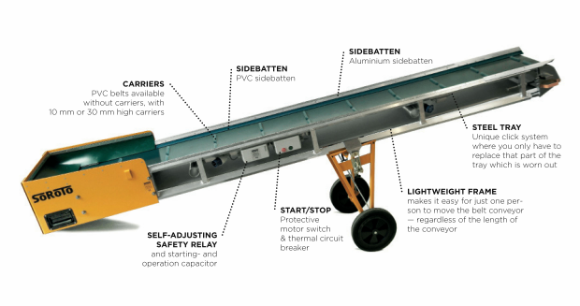

A SOROTO® BELT CONVEYOR INCLUDE

  • Standard feeder

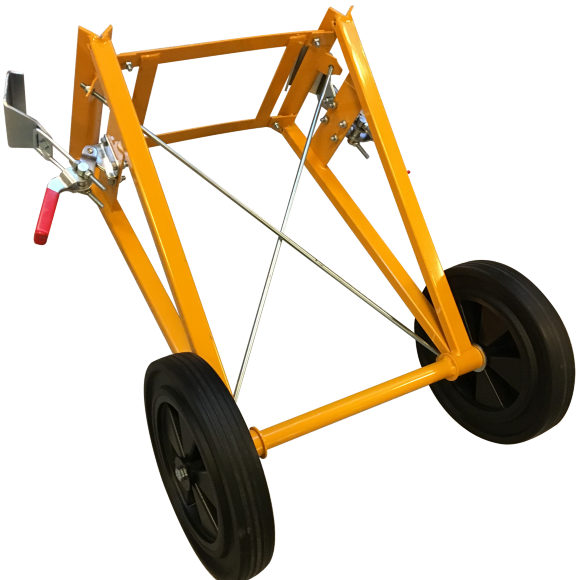

  • Two-wheel transport undercarriage

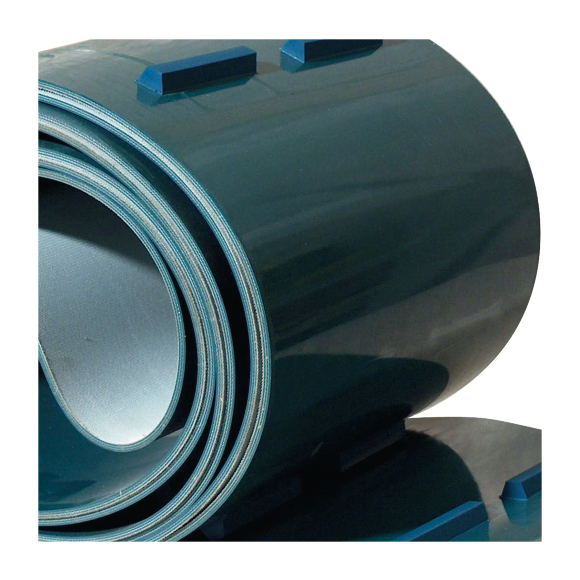

  • PVC belt with 10mm high carriers
  • PVC sidebattens
  • Aluminium sidebattens
  • Protective motor switch & thermal circuit breaker
  • Self-adjusting safety relay plus starting and operating capacitors
  • Powerful motor of 110V/230V

OPTIONAL

  • Extra wide feeder for wheelbarrow
  • Alternative PVC belts without carriers, with 30 mm high carriers or with extra tensile strength
  • Engine for extremely cold (or hot) temperatures

DOWNLOAD DATA SHEET FOR THE BELT CONVEYOR

Belt Conveyor
Motor 240 V / 110 V
Output 0.50 kW
Speed 32 cm/sec
Lenght 450 cm
Belt Width 34 cm
Frame Width 48 cm
Height 23 cm
Weight 85 kg
Max. Inclination 30/45°
