ITEM NO.: 3300

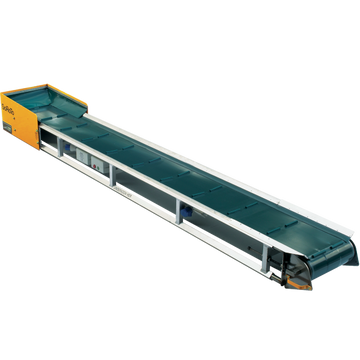

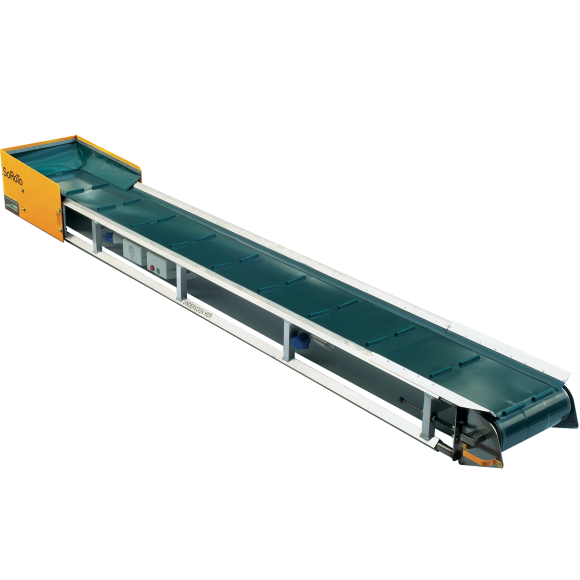

Belt Conveyor 3.3 m

A FLEXIBLE SOLUTION FOR A WIDE VARIETY OF JOBS

There is almost no limit to what a SoRoTo® belt conveyor can move for you.

Compared to traditional belt conveyors with rubber belts, our belts are made of PVC, which is a more durable and lightweight material, that furthermore requires minimal maintenance.

Our PVC belts - with or without carriers - can handle transportation of all kinds of materials, including building waste, rubble, wood chips, soil, sand, gravel, concrete etc.

- And it's easy to maintain. The holes in the bottom plates under the PVC belt cool down both the machine itself and the belt. In addition, they ensure that the machine cleans itself during operation.

Due to the open aluminum frame, we have achieved a very low weight on the entire unit, which in turn makes it an extremely portable conveyor system.

The unique scaffolding fittings make them perfect to use on scaffolding, where the belt conveyors can be safely mounted.

The width of our belt conveyors make them ideal for use in narrow workspaces, such as basements or entrances to apartment buildings where the space is cramped.

Our 3.3m belt conveyor is often used to transport aggregate into our forced action mixers. For this purpose, we offer a wider infeed hopper for wheelbarrow, which provides a larger and wider loading area, as well as protects the belt when loading bulky material.

In need of a spare part?  Go to accessories

A SOROTO® BELT CONVEYOR INCLUDE

  • Standard feeder
  • Two-wheel transport undercarriage
  • PVC belt with 10mm high carriers
  • PVC sidebattens
  • Aluminium sidebattens
  • Protective motor switch & thermal circuit breaker
  • Self-adjusting safety relay plus starting and operating capacitors
  • Powerful motor of 110V/230V

OPTIONAL

  • Extra wide feeder for wheelbarrow
  • Alternative PVC belts without carriers, with 30 mm high carriers or with extra tensile strength
  • Engine for extremely cold (or hot) temperatures

DOWNLOAD DATA SHEET FOR THE BELT CONVEYOR

Belt Conveyor
Motor 240 V / 110 V
Output 0.50 kW
Speed 32 cm/sec
Lenght 330 cm
Belt Width 34 cm
Frame Width 48 cm
Height 23 cm
Weight 65 kg
Max. Inclination 30/45°
